ESP32 2-Axis
Stabilization
System

Abstract

This project demonstrates a 2-axis stabilization system using ESP32 and MPU6050. The system reads motion data and controls two servo motors to stabilize movement in both roll (left-right) and pitch (forward-backward) directions.

Objective

• Build a 2-axis stabilization system
• Learn MPU6050 motion sensing
• Control servo motors based on calculated angle

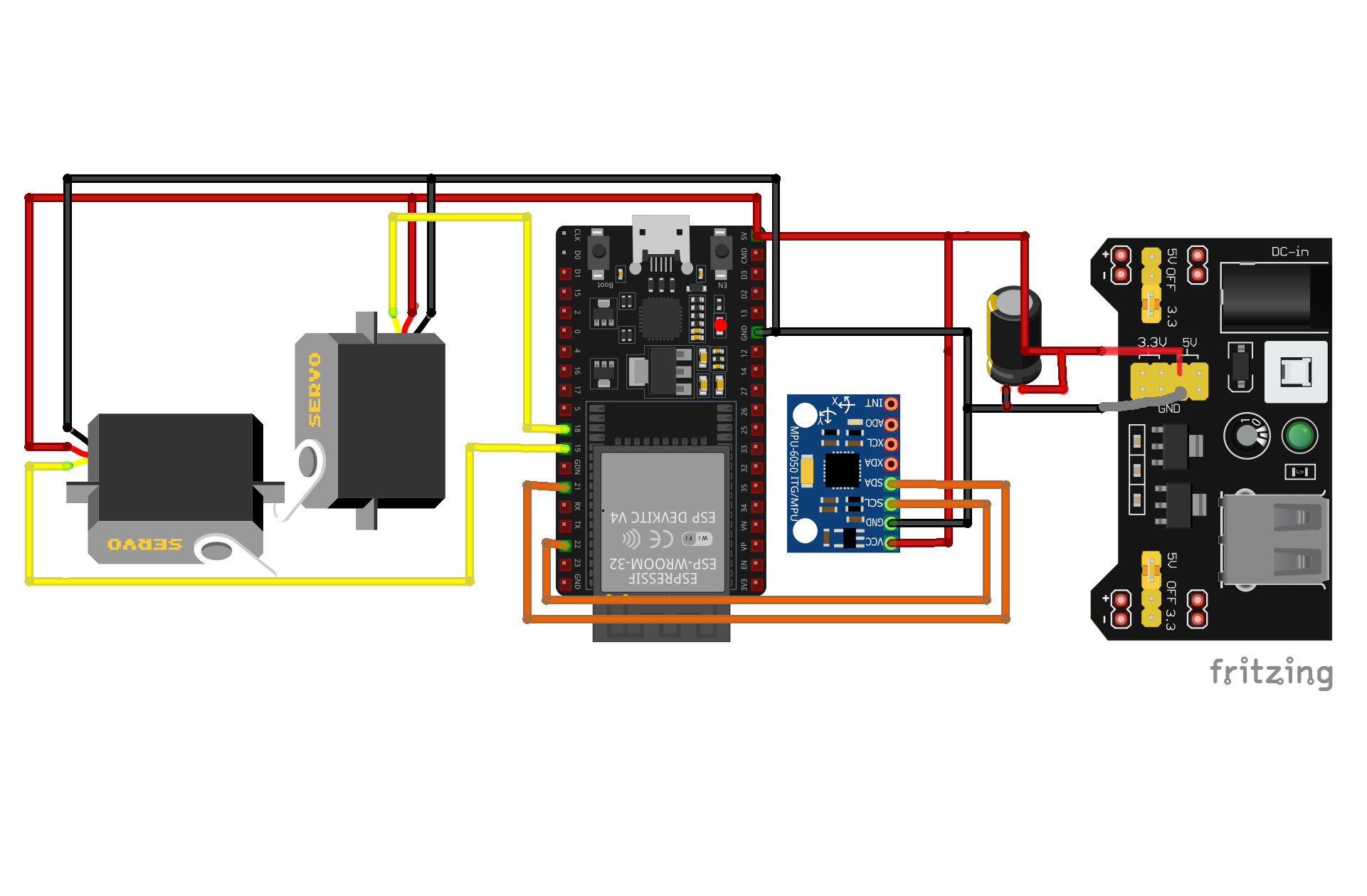

Components

Working Principle

The MPU6050 sensor measures acceleration on X and Y axes. The ESP32 calculates roll and pitch angles using these values. Based on the angle, two servo motors adjust their position to keep the system stable. One servo controls left-right movement, and the other controls forward-backward tilt.

Code

#include <Wire.h>
#include <MPU6050.h>
#include <ESP32Servo.h>

MPU6050 mpu;

Servo servoRoll;
Servo servoPitch;

float roll, pitch;

void setup() {
  Wire.begin(21, 22);
  mpu.initialize();

  servoRoll.attach(18);
  servoPitch.attach(19);
}

void loop() {
  int16_t ax, ay, az;
  mpu.getAcceleration(&ax, &ay, &az);

  roll  = atan2(ay, az) * 180 / PI;
  pitch = atan2(ax, az) * 180 / PI;

  int rollPos  = map(roll, -90, 90, 0, 180);
  int pitchPos = map(pitch, -90, 90, 0, 180);

  rollPos  = constrain(rollPos, 0, 180);
  pitchPos = constrain(pitchPos, 0, 180);

  servoRoll.write(180 - rollPos);
  servoPitch.write(pitchPos);

  delay(20);
}
