#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, -1);

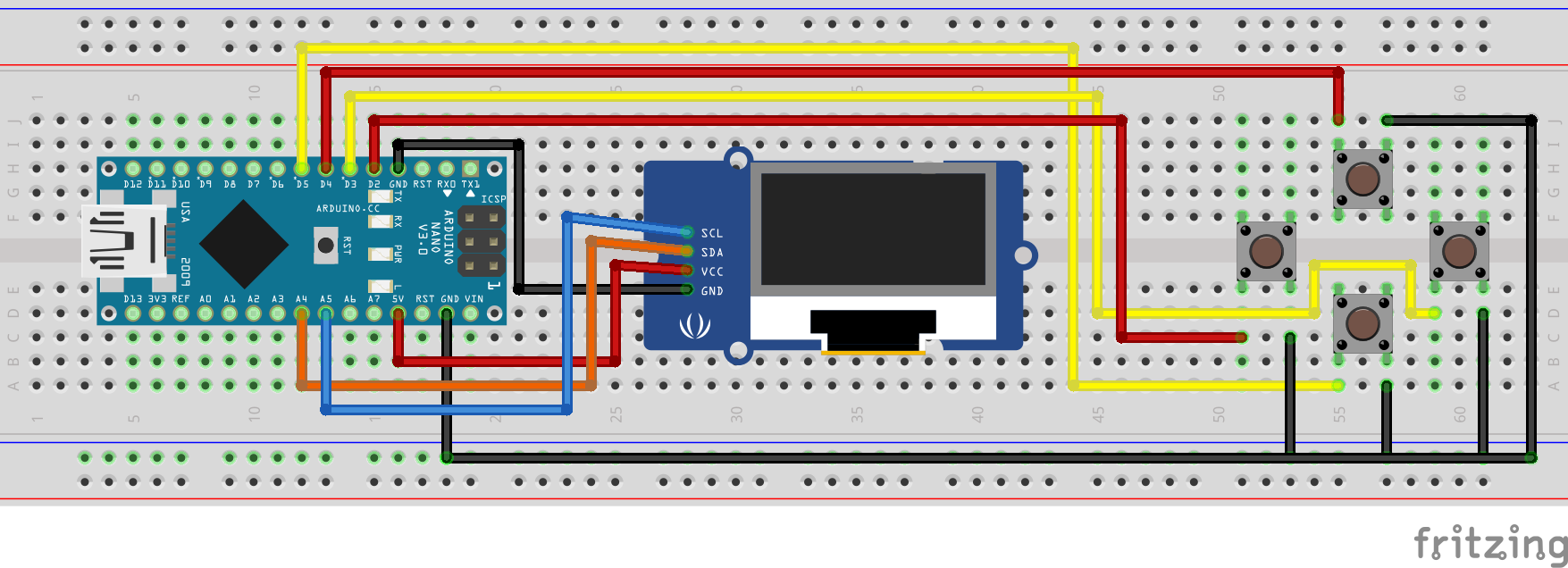

// --- Button pins ---
#define BTN_RIGHT  2
#define BTN_LEFT   3
#define BTN_UP     4
#define BTN_DOWN   5

struct Vec3 { float x, y, z; };
Vec3 vertices[8] = {
  {-1, -1, -1}, {1, -1, -1}, {1, 1, -1}, {-1, 1, -1},
  {-1, -1,  1}, {1, -1,  1}, {1, 1,  1}, {-1, 1,  1}
};

byte edges[12][2] = {
  {0,1},{1,2},{2,3},{3,0},
  {4,5},{5,6},{6,7},{7,4},
  {0,4},{1,5},{2,6},{3,7}
};

float angleX = 0, angleY = 0;

void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.clearDisplay();
  display.display();

  pinMode(BTN_LEFT, INPUT_PULLUP);
  pinMode(BTN_RIGHT, INPUT_PULLUP);
  pinMode(BTN_UP, INPUT_PULLUP);
  pinMode(BTN_DOWN, INPUT_PULLUP);
}

void loop() {

  if (digitalRead(BTN_LEFT) == LOW)  angleY -= 0.05;
  if (digitalRead(BTN_RIGHT) == LOW) angleY += 0.05;
  if (digitalRead(BTN_UP) == LOW)    angleX -= 0.05;
  if (digitalRead(BTN_DOWN) == LOW)  angleX += 0.05;

  display.clearDisplay();

  float sinX = sin(angleX), cosX = cos(angleX);
  float sinY = sin(angleY), cosY = cos(angleY);

  int x2d[8], y2d[8];

  for (int i = 0; i < 8; i++) {
    Vec3 p = vertices[i];

    float y1 = p.y * cosX - p.z * sinX;
    float z1 = p.y * sinX + p.z * cosX;

    float x2 = p.x * cosY + z1 * sinY;
    float z2 = -p.x * sinY + z1 * cosY;

    float distance = 3.5;
    float fov = 64;
    float factor = fov / (z2 + distance);

    x2d[i] = (int)(x2 * factor + SCREEN_WIDTH / 2);
    y2d[i] = (int)(y1 * factor + SCREEN_HEIGHT / 2);
  }

  for (int i = 0; i < 12; i++) {
    int a = edges[i][0];
    int b = edges[i][1];
    display.drawLine(x2d[a], y2d[a], x2d[b], y2d[b], SSD1306_WHITE);
  }

  display.display();
  delay(20);
}
